Economic 3 Roll Mechanical Rolling Machine

1. Introduction of The 3 Roll Mechanical Rolling Machine

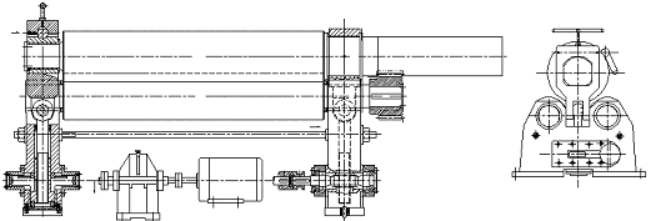

The structure of the 3 roll mechanical rolling machine is three-roll symmetrical, the upper roller in the middle of the two lower rollers symmetrical position for vertical lifting movement, through the screw worm drive to obtain the upper roller for lifting movement, through the reducer output gear meshing with the lower roller gear to obtain the two lower rollers for mutual rotation movement, to provide torque for the rolling plate. The machine is a whole structure, the working part and the main driving part are installed on a rigid welding base, which facilitates the installation and debugging of the machine.

2. Apllication of 3 Roll Mechanical Rolling Machine

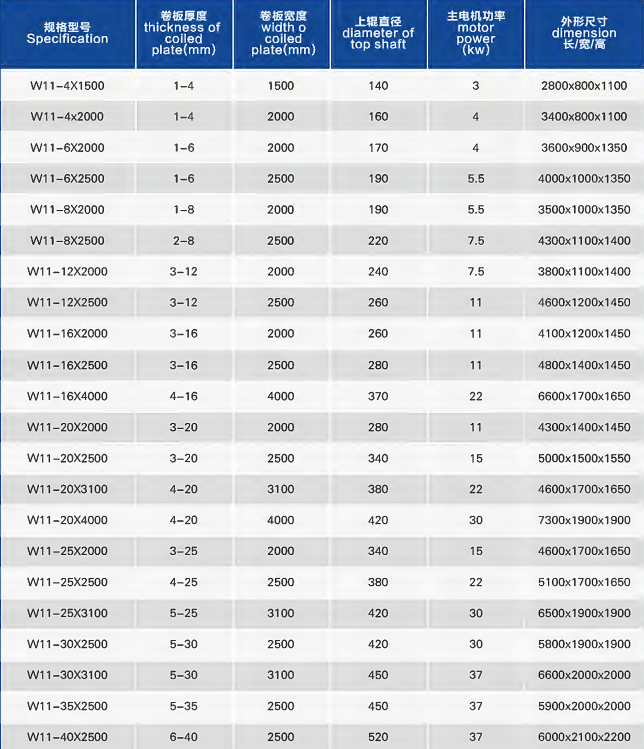

3. Parameters of 3 Roll Mechanical Rolling Machine
