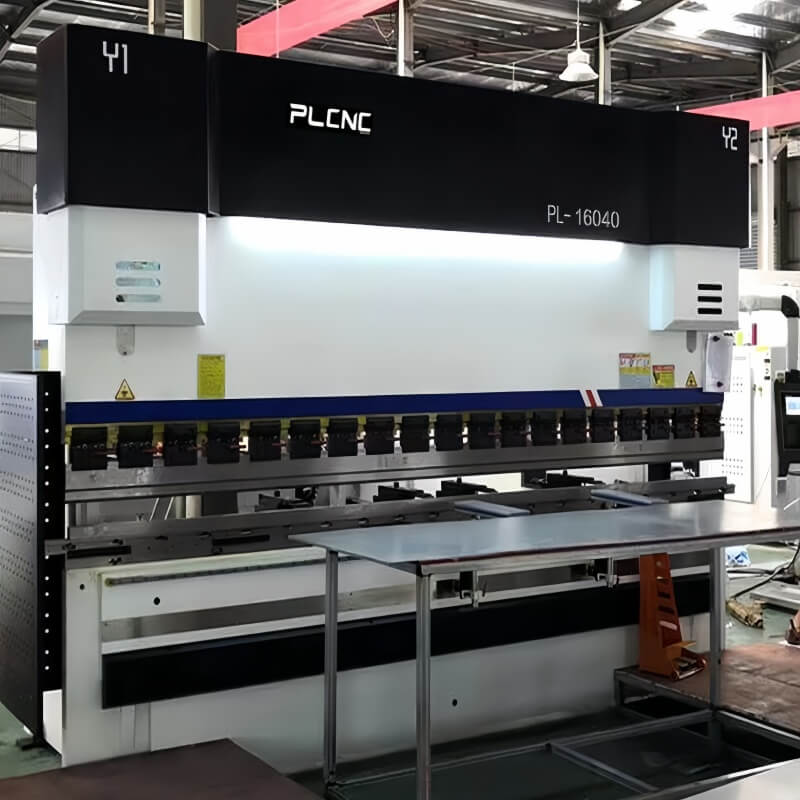

CNC Press Brake for Carbon Steel Plates

1. Introduction of the CNC Press Brake

CNC press brake DA53Tx is a compact, reliable, and easy-to-use electro-hydraulic bending machine CNC system. It is based on 4 axes with deflection compensation, and is combined with touch HMI, electro-hydraulic servo, safety logic, and communication expansion to form a complete control closed loop. It is the mainstream configuration for high-precision bending of medium and thin plates.

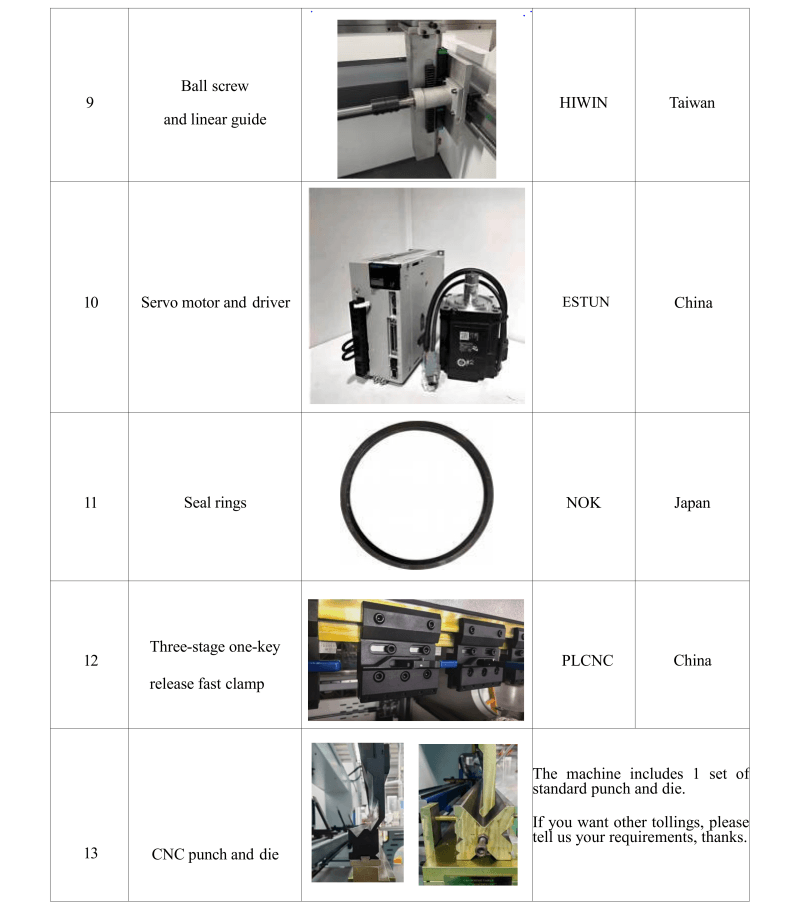

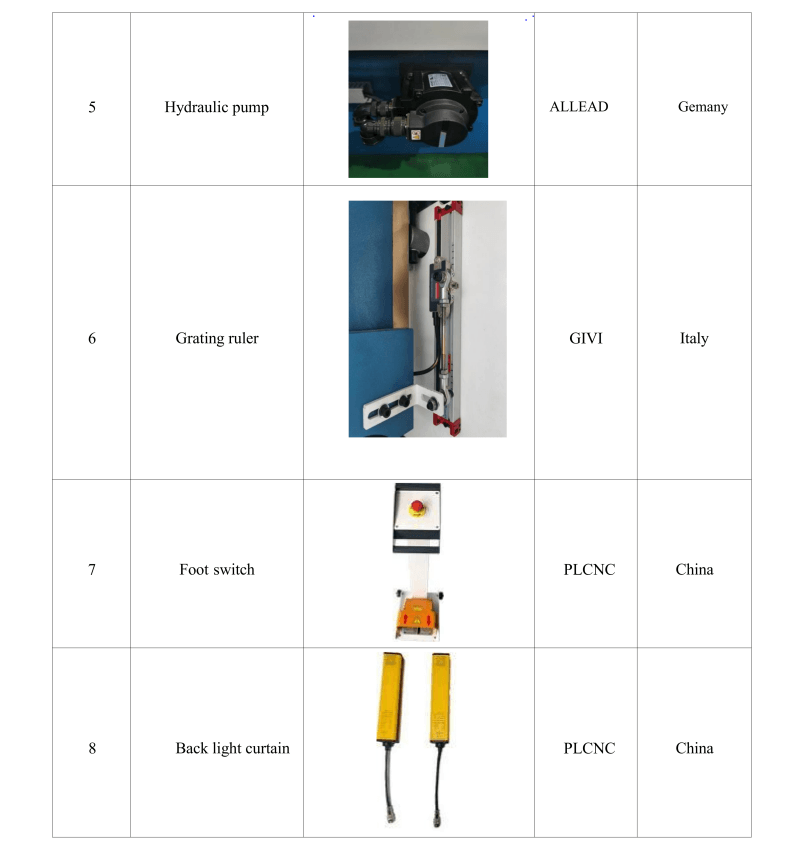

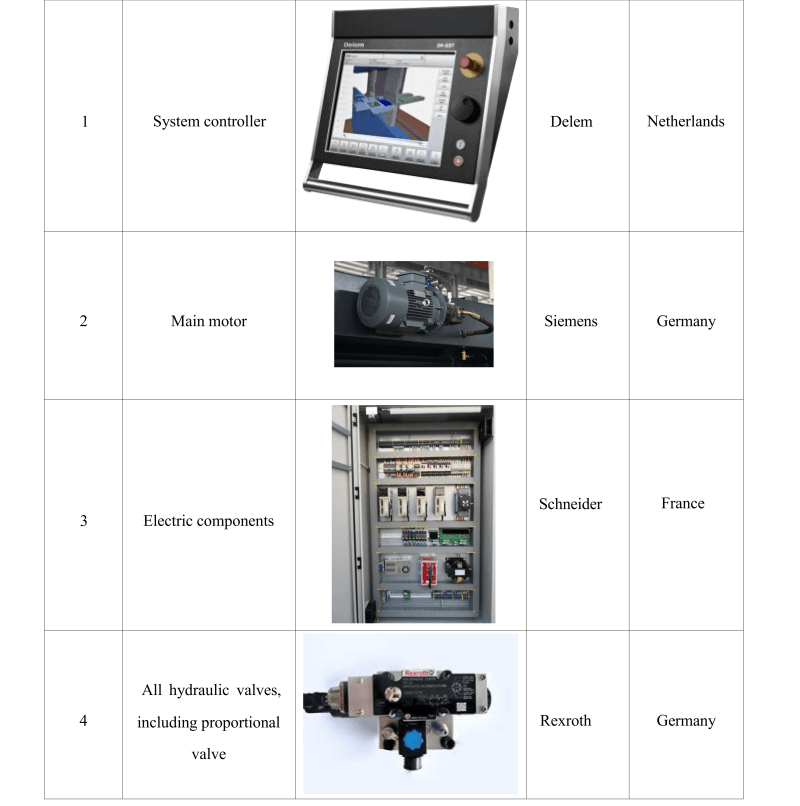

2. Standard Configurations of A CNC Press Brake

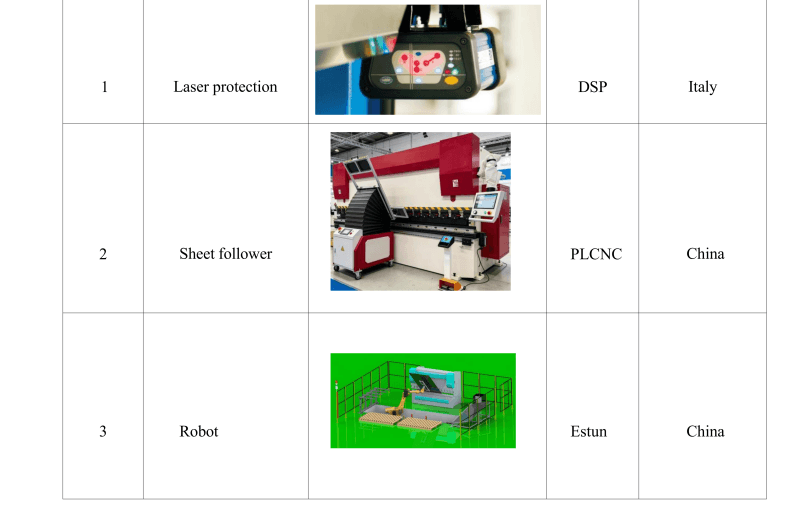

3. Optional Configurations of A CNC Press Brake

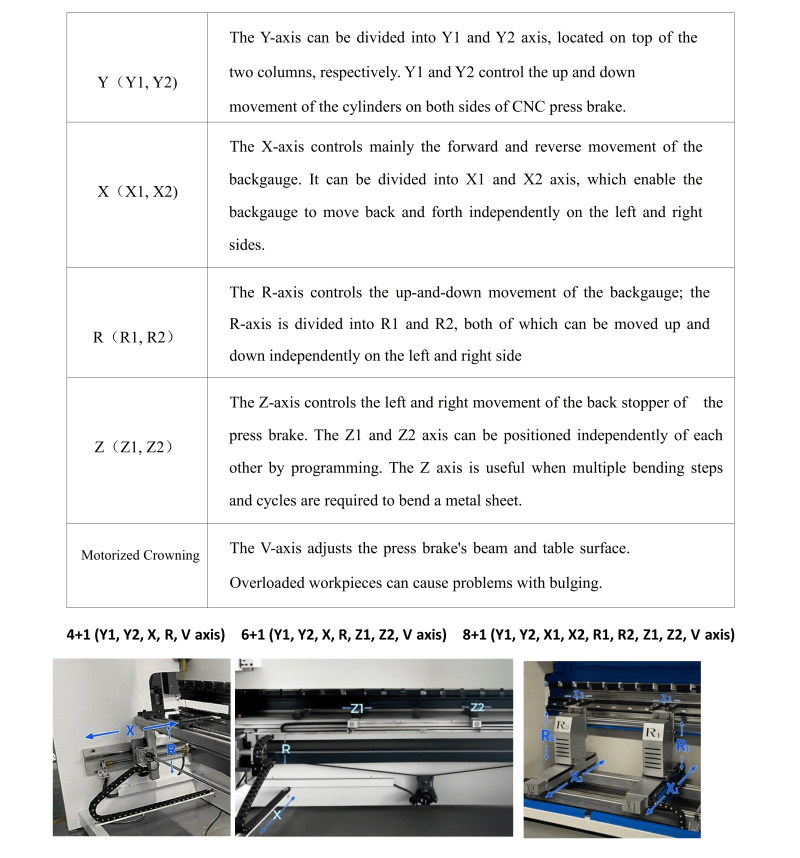

4. Back Axis Choice of A CNC Press Brake
