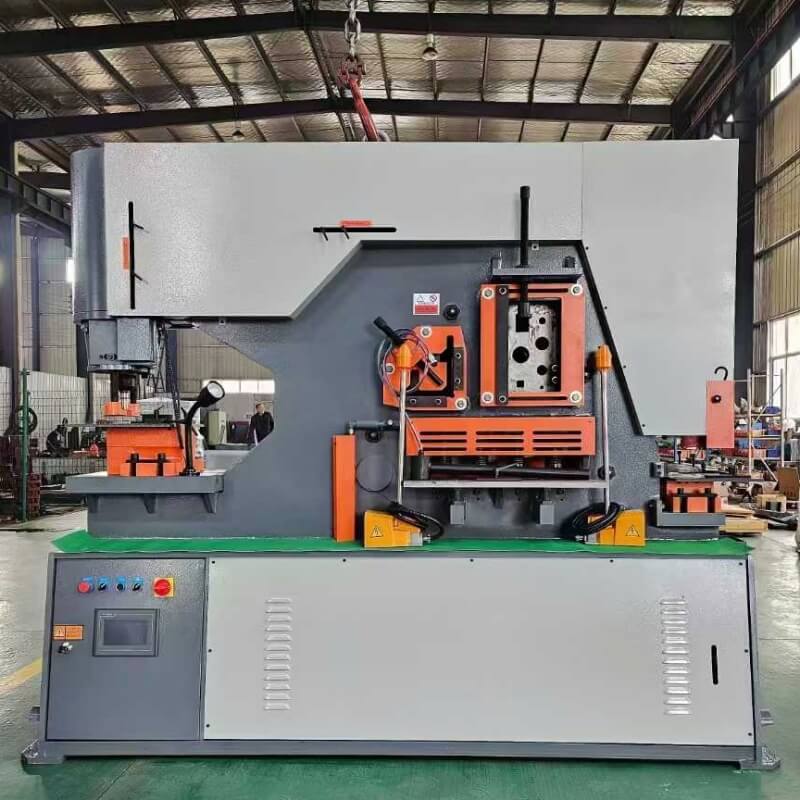

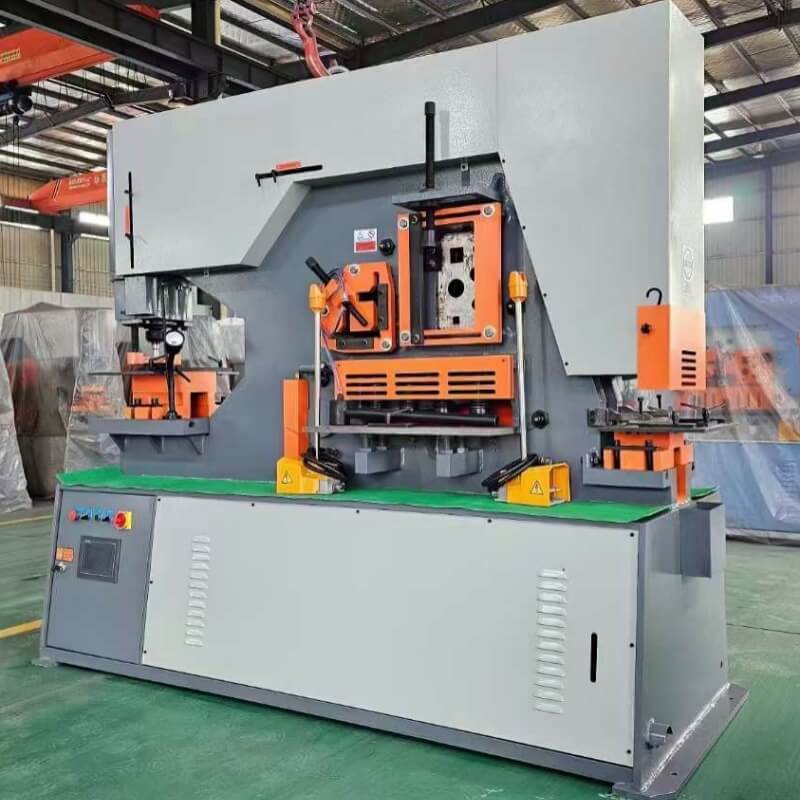

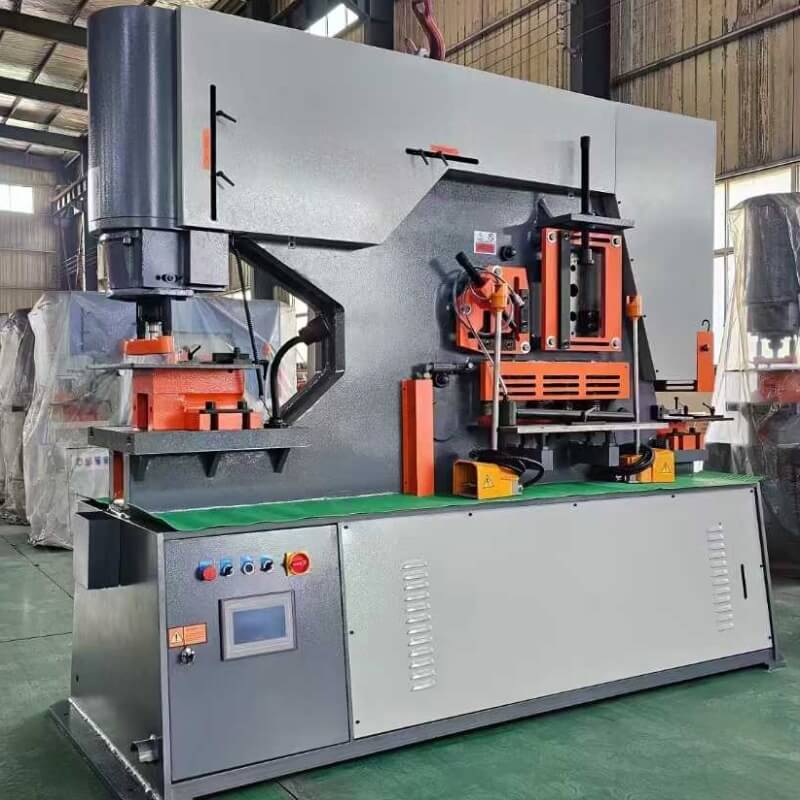

Q35Y 30 Hydraulic Ironworkers 160T
Q35Y 30 Hydraulic ironworkers 160T are vey hot-selling. It is combined with punching and shearing machine. It can shear, punch, and die-cut sheet metal, square steel, round steel, angle steel, channel steel, and I-beams.
1. Introduction of Q35Y 30 Hydraulic Ironworkers 160T
2. Details of The Q35Y 30 Hydraulic Ironworkers 160T
3. Parameters of Ironworker 160 Ton
No. | Function | Item. | Unit | Q35Y-30 |
1 |
Shearing Plate | Max shearing thickness | mm | 30 |
Plate steel length and thickness | (W*T)
mm | 330×30 | ||
600×20 | ||||
2 |
Shearing profile steel | Round steel | mm | 65 |
Square steel | mm | 55×55 | ||
90 ° shearing of equal-angle steel |
mm |
180×180×16 | ||
45 ° shearing of equal-angle steel |
mm |
60×60×6 | ||
90 ° shearing of T-bar | mm | 160×160×16 | ||
45 ° shearing of T-bar | 80×80×10 | |||
I shape steel | mm | 280×124×10.5 | ||
Channel steel | mm | 280×86×11.5 | ||
3 |
Notch | Depth | mm | 100 |
Width | mm | 50 | ||
4 |
Punching hole | Max. punching thickness | mm | 30 |
Max. diameter of punching | mm | 38 | ||
Punching pressure | Ton | 160 |
Depth of throat | mm | 600 | ||
Max. length of cylinder
stroke |
mm |
80 | ||
Stroke times | Times/min | 13-24 | ||
5 | Material strength | N/mm² | ≤450 | |
6 | Motor power | KW | 11 | |
7 | Volumn (L*W*H) | mm | 2650*1050*2300 | |
8 | Weight | KG | 6200 | |
