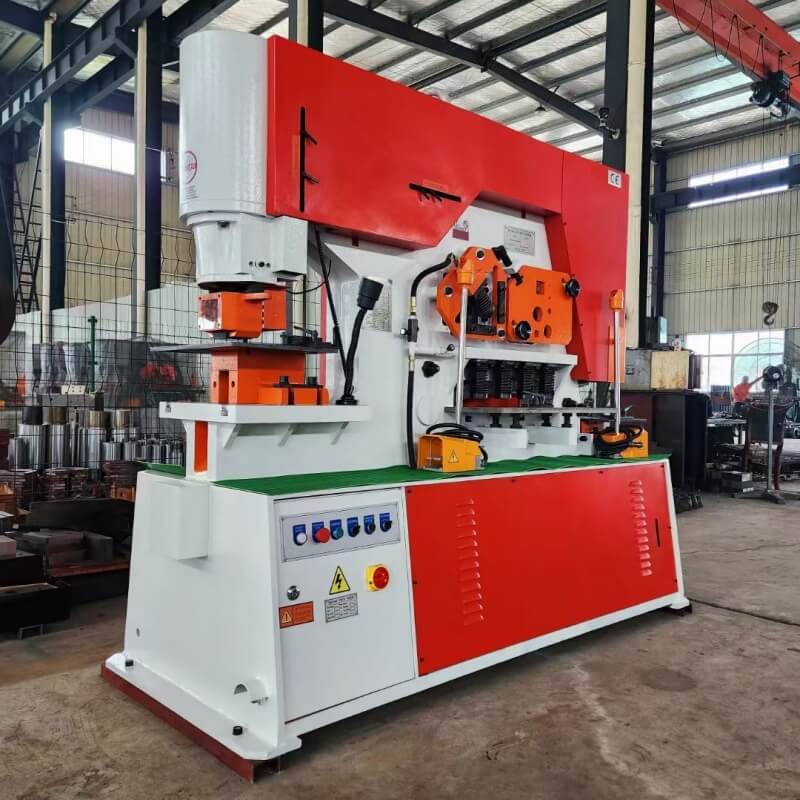

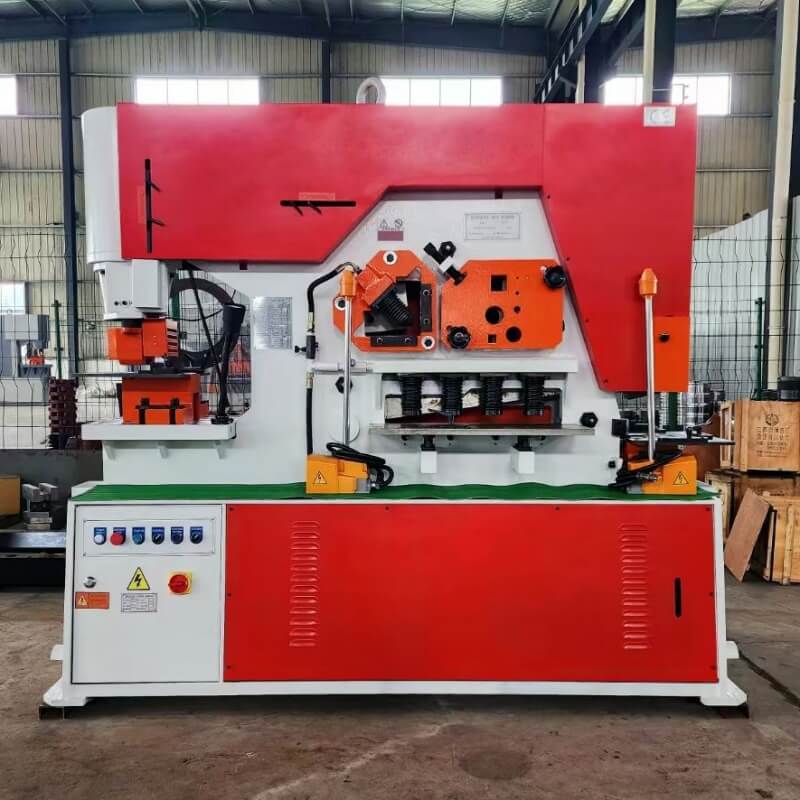

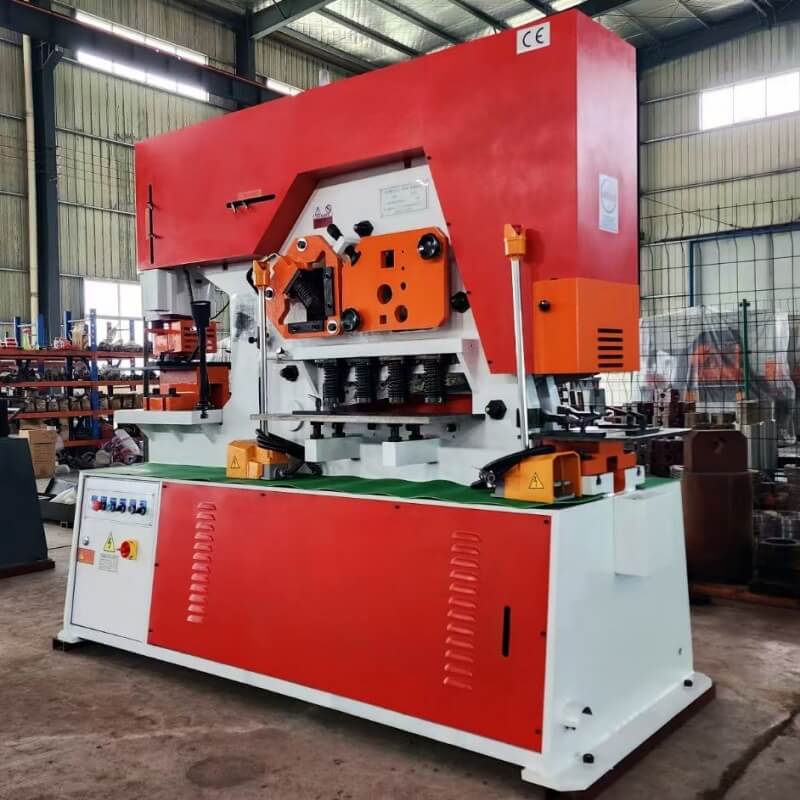

Q35Y 20 Hydraulic Ironworker 90 Ton
Q35Y-20 Hydraulic ironworker 90 ton is combined with punching and shearing machine. It can shear, punch, and die-cut sheet metal, square steel, round steel, angle steel, channel steel, and I-beams. Electric panel with overload protection elements and integrated controls.
1. Introduction of Q35Y 20 Hydraulic Ironworker 90 Ton
2. Details of Q35Y-20 Hydraulic Ironworker 90 Ton
3. Parameters of Q35Y-20 Hydraulic Ironworker 90 Ton
No. | Function | Item. | Unit | Q35Y-20 |
1 |
Shearing Plate | Max shearing thickness | mm | 20 |
Plate steel length and thickness | (W*T)
mm | 330×20 | ||
480×10 | ||||
2 |
Shearing profile steel | Round steel | mm | 50 |
Square steel | mm | 50×50 | ||
90 ° shearing of equal-angle steel |
mm |
140×140×12 | ||
45 ° shearing of equal-angle steel |
mm |
50×50×5 | ||
90 ° shearing of T-bar | mm | 140×140×12 | ||
45 ° shearing of T-bar | 70×70×10 | |||
I shape steel | mm | 160×86×6 | ||
Channel steel | mm | 160×60×6.5 | ||
3 |
Notch | Depth | mm | 100 |
Width | mm | 50 | ||
4 |
Punching hole | Max. punching thickness and diameter | mm | 20*30 |
Max. punching thickness and diameter | mm | 12*50 | ||
Punching pressure | Ton | 90 |
Depth of throat | mm | 355 | ||
Max. length of cylinder
stroke |
mm |
80 | ||
Stroke times | Times/min | 13-24 | ||
5 | Material strength | N/mm² | ≤450 | |
6 | Motor power | KW | 5.5 | |
7 | Volumn (L*W*H) | mm | 1850*860*1900 | |
8 | Weight | KG | 2300 | |
