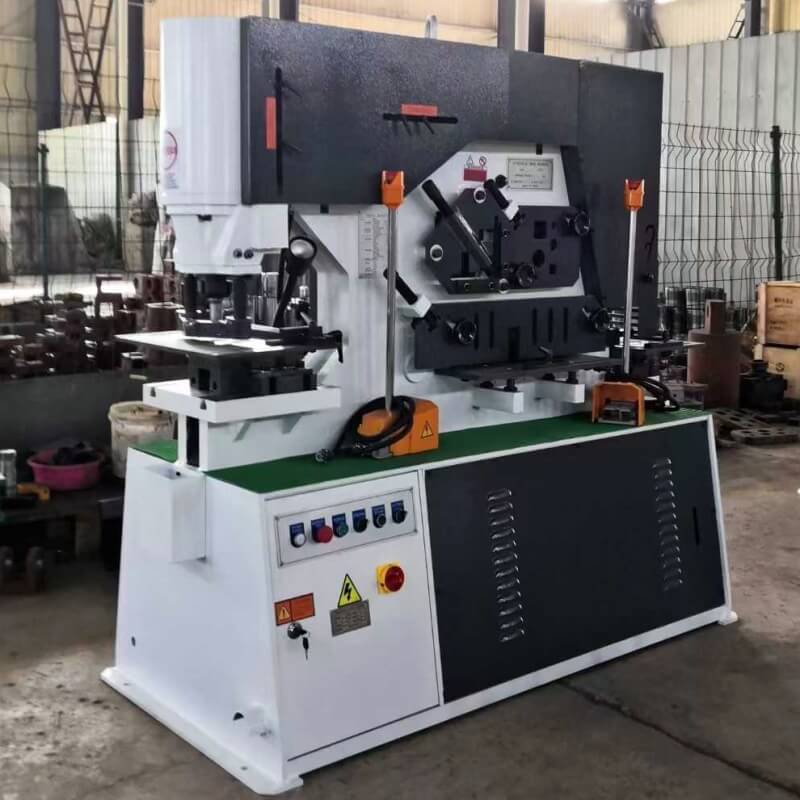

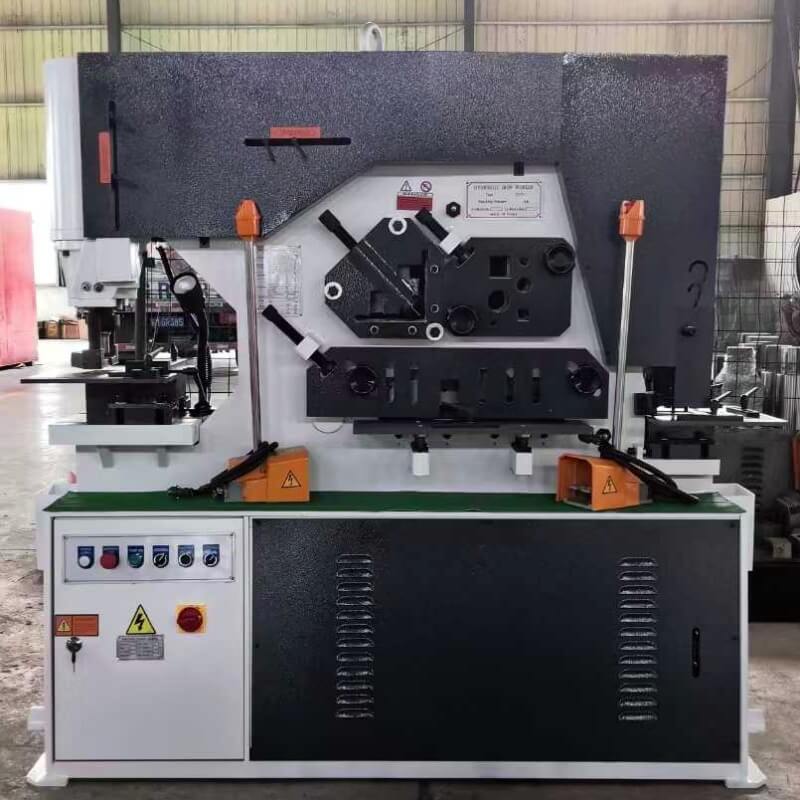

Punching And Shearing Machine 90 Ton
Hydraulic punching and shearing machine can punch holes, cut angle steel,channel steel, round tubes, square tubes, steel plates and so on.
1. Introduction of Punching And Shearing Machine 90 Ton
2. Details of The Punching And Shearing Machine 90 Ton
3. Parameters of Ironworker 90 Ton
No. | Function | Item. | Unit | Q35Y-20 |
1 |
Shearing Plate | Max shearing thickness | mm | 20 |
Plate steel length and thickness | (W*T)
mm | 330×20 | ||
480×10 | ||||
2 |
Shearing profile steel | Round steel | mm | 50 |
Square steel | mm | 50×50 | ||
90 ° shearing of equal-angle steel |
mm |
140×140×12 | ||
45 ° shearing of equal-angle steel |
mm |
50×50×5 | ||
90 ° shearing of T-bar | mm | 140×140×12 | ||
45 ° shearing of T-bar | 70×70×10 | |||
I shape steel | mm | 160×86×6 | ||
Channel steel | mm | 160×60×6.5 | ||
3 |
Notch | Depth | mm | 100 |
Width | mm | 50 | ||
4 |
Punching hole | Max. punching thickness and diameter | mm | 20*30 |
Max. punching thickness and diameter | mm | 12*50 | ||
Punching pressure | Ton | 90 |
Depth of throat | mm | 355 | ||
Max. length of cylinder
stroke |
mm |
80 | ||
Stroke times | Times/min | 13-24 | ||
5 | Material strength | N/mm² | ≤450 | |
6 | Motor power | KW | 5.5 | |
7 | Volumn (L*W*H) | mm | 1850*860*1900 | |
8 | Weight | KG | 2300 | |
