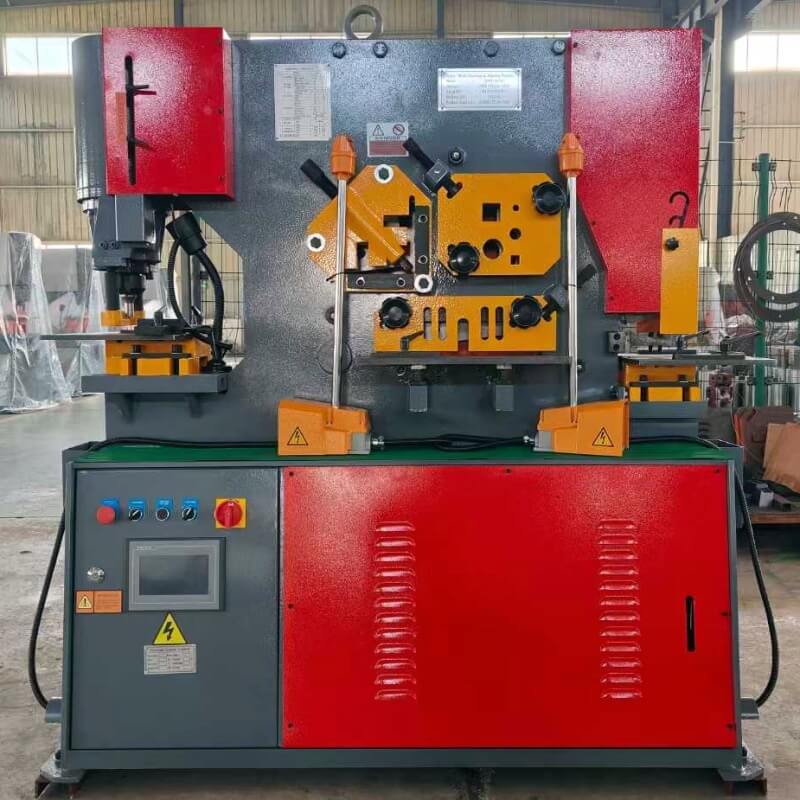

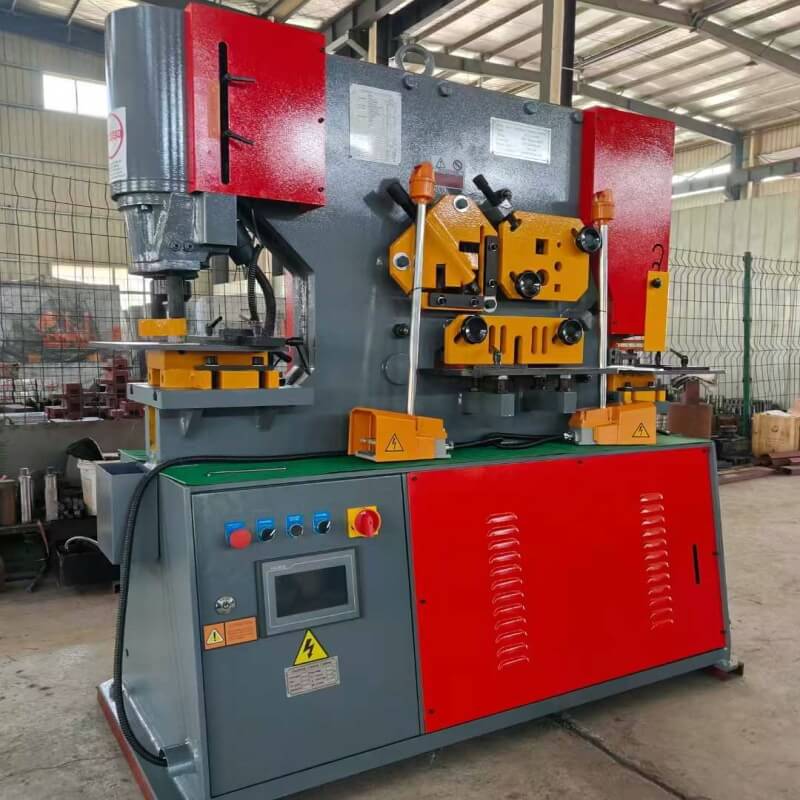

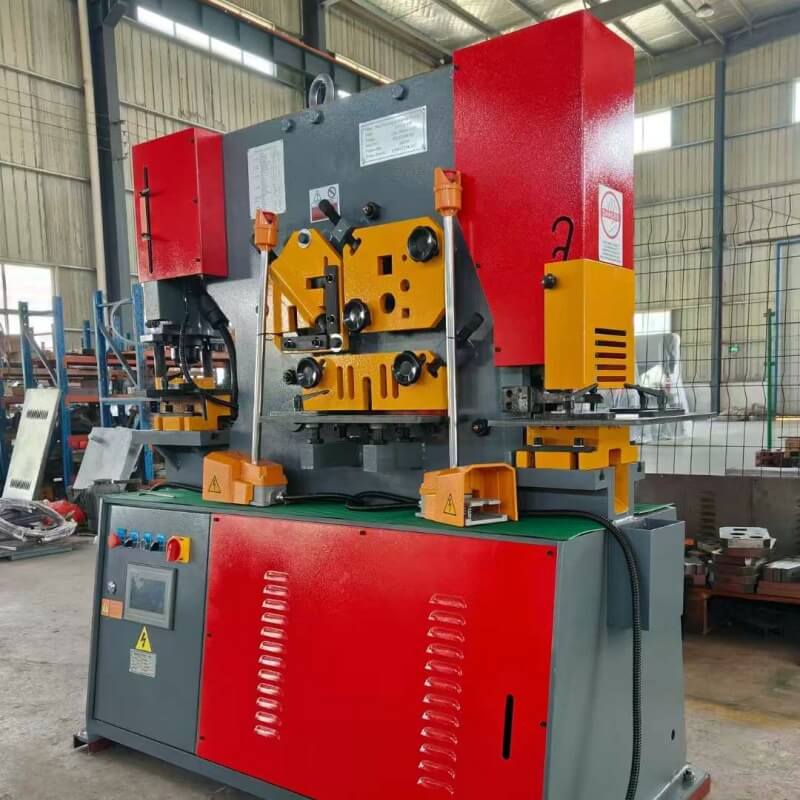

Hydraulic ironworker 65 Ton
Hydraulic ironworkers can punch holes, cut angle steel,channel steel, round tubes, square tubes, steel plates and so on.
1. Introduction of Hydraulic Ironworker 65 Ton

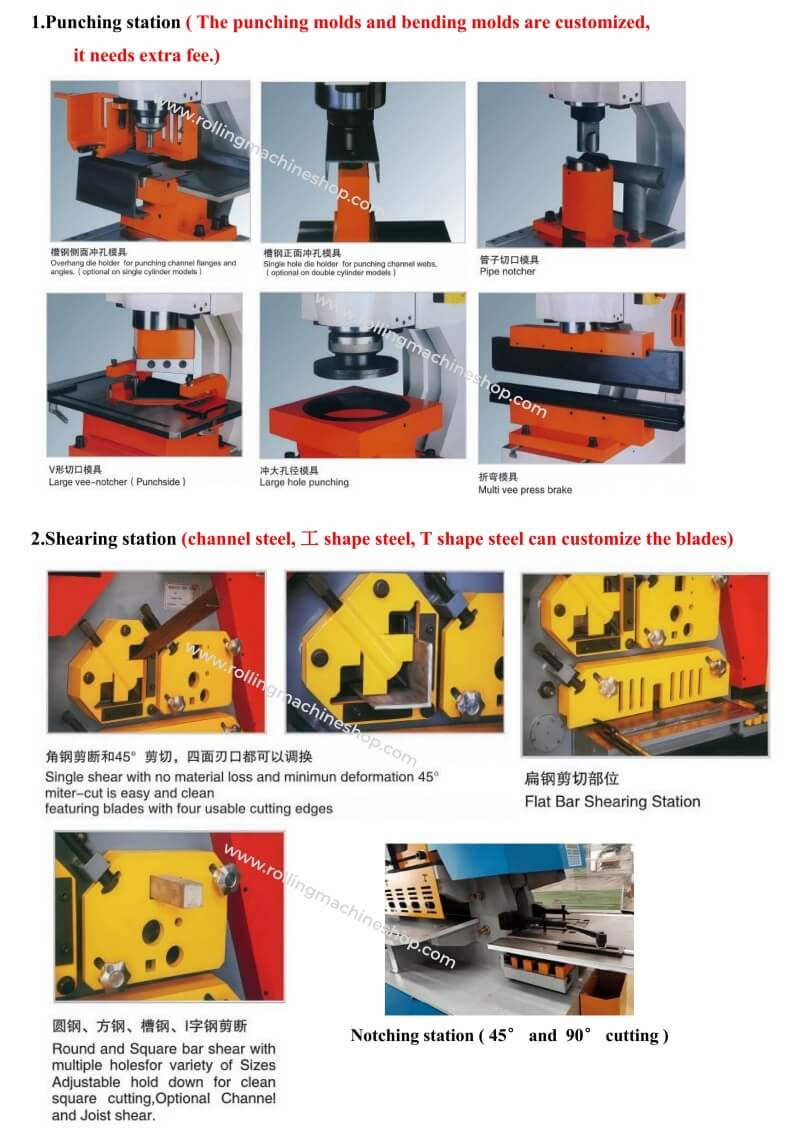

2. Details of The Hydraulic Ironworker 65 Ton
3. Parameters
No. | Function | Item. | Unit | Q35Y-16 |
1 |
Shearing Plate | Max shearing thickness | mm | 16 |
Plate steel length and thickness | (W*T)
mm | 250×16 | ||
400×8 | ||||
2 |
Shearing profile steel | Round steel | mm | 45 |
Square steel | mm | 40×40 | ||
90 ° shearing of equal-angle steel |
mm |
125×125×12 | ||
45 ° shearing of equal-angle steel |
mm |
50×50×5 | ||
90 ° shearing of T-bar | mm | 125×125×12 | ||
45 ° shearing of T-bar | 60×60×8 | |||
I shape steel | mm | 126×74×5 | ||
Channel steel | mm | 126×53×5.5 | ||
3 |
Notch | Depth | mm | 94 |
Width | mm | 38 | ||
4 |
Punching hole | Max. punching thickness and diameter | mm | 16*25 |
Max. punching thickness and diameter | mm | 8*50 | ||
Punching pressure | Ton | 65 |
Depth of throat | mm | 300 | ||
Max. length of cylinder
stroke |
mm |
80 | ||
Stroke times | Times/min | 13-24 | ||
5 | Material strength | N/mm² | ≤450 | |
6 | Motor power | KW | 4 | |
7 | Volumn (L*W*H) | mm | 1650*800*1800 | |
8 | Weight | KG | 1650 | |
