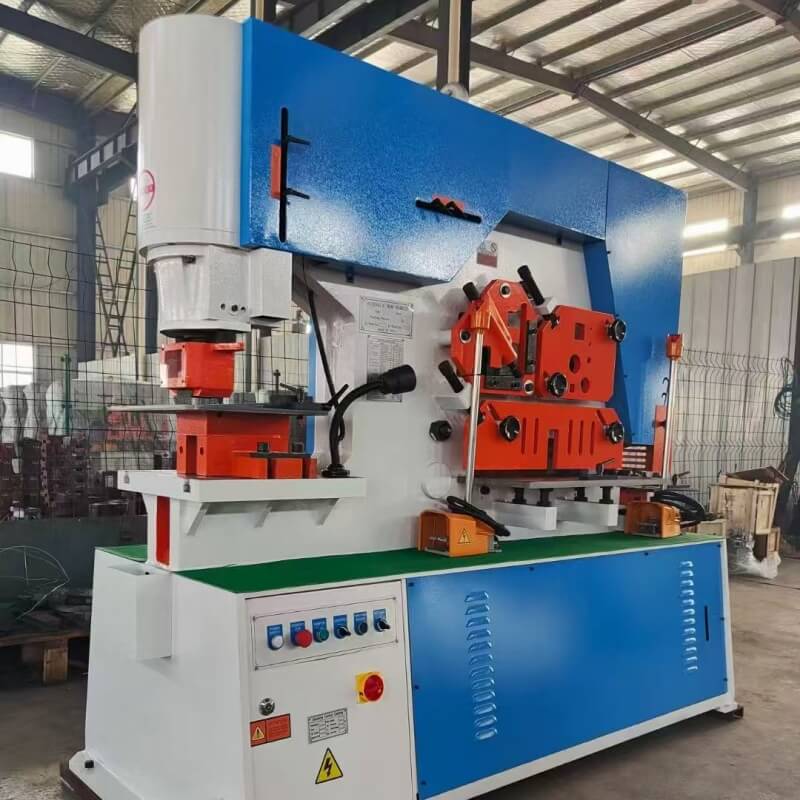

Double Cylinder Hydraulic Punching And Shearing Machine 200T
Double cylinder hydraulic punching and shearing machine 200T is combined with punching and shearing machine. It can shear, punch, and die-cut sheet metal, square steel, round steel, angle steel, channel steel, and I-beams. Large punching table with multi-purpose bolster.
1. Introduction of Q35Y 40 Hydraulic Ironworkers 200T
2. Details of Double Cylinder Hydraulic Punching And Shearing Machine 200T
3. Parameters of Double Cylinder Hydraulic Punching And Shearing Machine 200T
No. | Function | Item. | Unit | Q35Y-40 |
1 |
Shearing Plate | Max shearing thickness | mm | 35 |
Plate steel length and thickness | (W*T)
mm | 400×35 | ||
700×25 | ||||
2 |
Shearing profile steel | Round steel | mm | 70 |
Square steel | mm | 60×60 | ||
90 ° shearing of equal-angle steel |
mm |
200×200×18 | ||
45 ° shearing of equal-angle steel |
mm |
100×100×10 | ||
90 ° shearing of T-bar | mm | 180×180×16 | ||
45 ° shearing of T-bar | 80×80×10 | |||
I shape steel | mm | 300×126×11 | ||
Channel steel | mm | 300×89×12 | ||
3 |
Notch | Depth | mm | 100 |
Width | mm | 50 | ||
4 |
Punching hole | Max. punching thickness | mm | 35 |
Max. diameter of punching | mm | 40 | ||
Punching pressure | Ton | 200 |
Depth of throat | mm | 600 | ||
Max. length of cylinder
stroke |
mm |
80 | ||
Stroke times | Times/min | 13-24 | ||
5 | Material strength | N/mm² | ≤450 | |
6 | Motor power | KW | 15 | |
7 | Volumn (L*W*H) | mm | 2900*1220*2200 | |
8 | Weight | KG | 8000 | |
