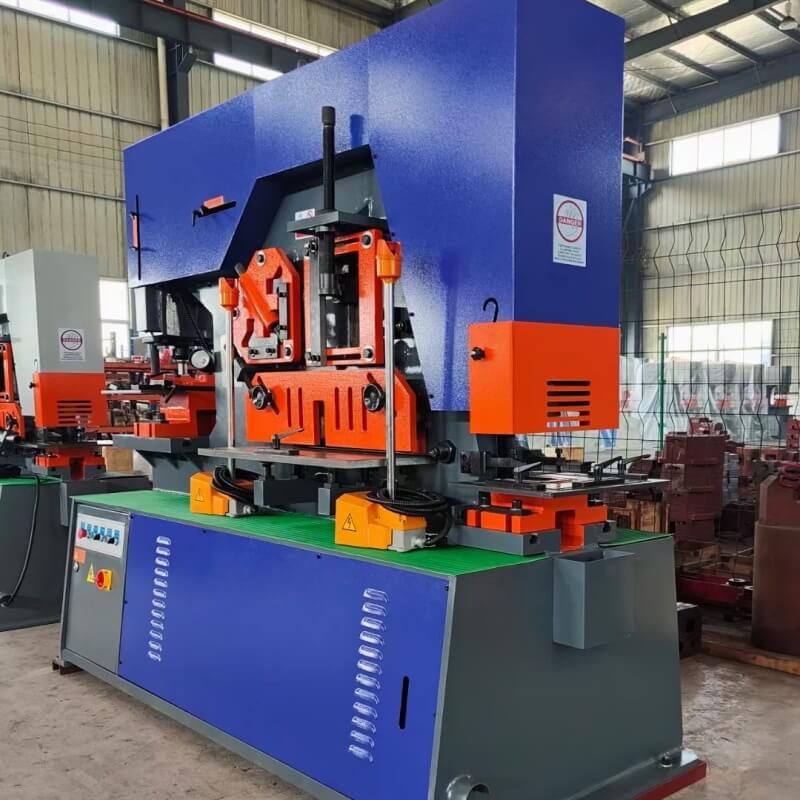

120 Ton Hydraulic Punch And Shear Q35Y 25
120 Ton hydraulic punch and shear machine can punch holes, cut angle steel,channel steel, round tubes, square tubes, steel plates and so on.
1. Introduction of 120 Ton Hydraulic Punch And Shear
2. Details of The 120 Ton Hydraulic Punch And Shear
3. Parameters of Ironworker 120 Ton
No. | Function | Item. | Unit | Q35Y-25 |
1 |
Shearing Plate | Max shearing thickness | mm | 25 |
Plate steel length and thickness | (W*T)
mm | 330×25 | ||
600×16 | ||||
2 |
Shearing profile steel | Round steel | mm | 60 |
Square steel | mm | 50×50 | ||
90 ° shearing of equal-angle steel |
mm |
160×160×14 | ||
45 ° shearing of equal-angle steel |
mm |
60×60×6 | ||
90 ° shearing of T-bar | mm | 160×160×14 | ||
45 ° shearing of T-bar | 80×80×10 | |||
I shape steel | mm | 200×102×9 | ||
Channel steel | mm | 210×75×9 | ||
3 |
Notch | Depth | mm | 100 |
Width | mm | 50 | ||
4 |
Punching hole | Max. punching thickness and diameter | mm | 25*35 |
Max. punching thickness and diameter | mm | 18*50 | ||
Punching pressure | Ton | 120 |
Depth of throat | mm | 400 | ||
Max. length of cylinder
stroke |
mm |
80 | ||
Stroke times | Times/min | 13-24 | ||
5 | Material strength | N/mm² | ≤450 | |
6 | Motor power | KW | 7.5 | |
7 | Volumn (L*W*H) | mm | 2200*1000*2100 | |
8 | Weight | KG | 3800 | |
